Quick Details

  • Condition: New
  • Type: Wheel Tractor
  • By wheel: 4WD
  • Usage: Garden Tractor
  • Drive Type: Gear Drive
  • Power(W): 36.8kw
  • Certificate: ISO
  • Brand Name: WEITUO
  • Model Number: 504
  • Place of Origin: China (Mainland)
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: Customized
  • Engine: LAIDONG
  • Tire: 9.5-16

Packaging & Delivery

Packaging Details: NUDE IN IRON FRAME, 18 SETS/40 HQ
Dimensions:2950mm*1200mm*1170mm
Gross weight: 1150KG
We also provide SKD service .
Delivery Detail: 10DAYS
Product Description







   Model

TE400

TE500

TE404

TE504

 Type

4*2 0r 4*4



Dimensions

Of Tractor(mm)

 Length

2950

 Width

1200

 Height

1170



(mm)

Tread

 Front Wheel

2wd:950/1150/1250   4wd:1000/1200/1250

 Rear Wheel

2wd:960/1150/1250   4wd:1000/1200/1250

  Wheel Base

2wd:1720    4wd:1780



Min. Ground Clearance(mm)

190



Min Radius of

Turning Circle(m)



One-side braking

2wd:2.5     4wd:2.8



No braking

2wd:3.0     4wd:3.45

 Dry Mass(kg)

950

1150

950

1150



Engine

 Model

4L23BT

4L100BT

 Type

   Vertical,4-cylinder,Watercooled,4-stroke

 (kW)Rated Power

29.4

36.8

 (r/min)Rated Rev.

2400

 Fuel

 Diesel Oil

Connection between engine and clutch

 Shaft connection

 Clutch

                              Single Disc,Dry-friction,Single Stage

  Transmission Box

 (4+1)×2Mechanical Type

  Steering

Mechanical Type or Hydraulic Type

Suspension Type

                                    Post Postitioned Tri-piont Sus pen sion,Catalogue 1



PTO

Type and Rev(r/min)

 720 Single speed Non-independent Type 720



Spline Size

 (6×28.91×34.79×8.69)

Post positioned35 Rectangle Spline with 6 teeth (6×28.91×34.79×8.69)

speed km/h

 Forward

1.77-26.98

 Reverse

2.33-10.77

Tyre

FRONT

5.00-12/6.00-12

REAR

9.5-16

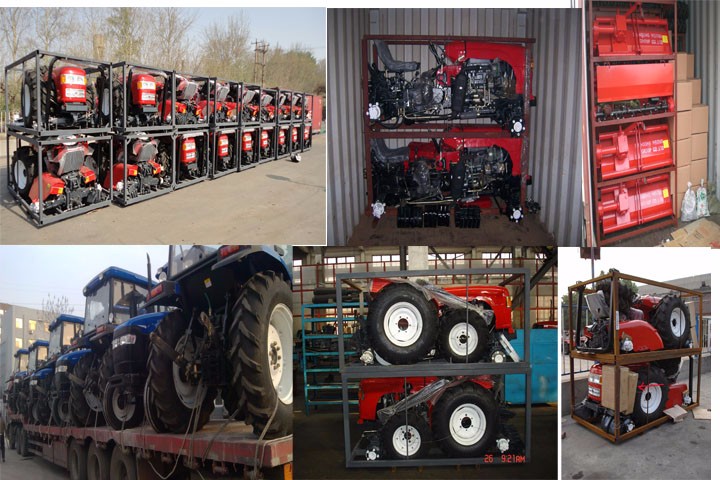

Packaging & Shipping

  NUDE IN IRON FRAME,  18 SETS/40 HQ

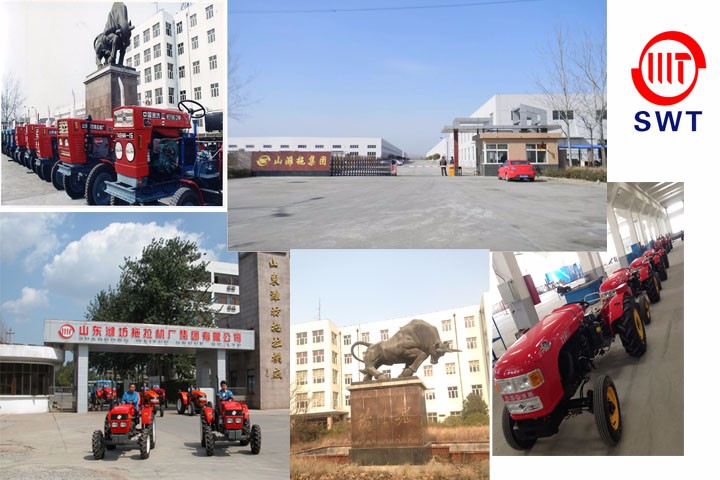

Company Information







Shandong Weituo Group Co., Ltd ( hereinafter called SWT ) is one of the largest backbone enterprises in Chinese Agricultural Machinery Field. It has more than 60 years history and its registered capital is 150 million RMB. SWT covers 210,000 square meters of tractor industrial garden and power machinery industrial garden which are located respectively in Weifang Economic Technology Developing Zone and Fangzi District. Tractor annual output is 100000 units. Engine annual output is 80,000 units. Genset annual output is 30,000 units.

The SWT mainly produces various types of wheeled tractors, power machinery (including diesel engines, gas engines, new energy machinery, etc.), gensets (including low noise gensets and automatic controlled gensets), power equipment accessories and other products.
